Active Directory Health Check Tool

Easily Check the health of Active Directory, diagnose issues, check DNS and event logs.

Key Features

Here are the advantages of using the domain controller health check tool.

Automated Email Reports

Get daily or weekly automated email reports on the health of your domain controllers. Click on the scheduler, configure the email settings, and a task.

Check Domain Controller Health

The Active Directory monitoring tool runs a total of 27 tests on each domain controller. You can choose between basic, comprehensive, and DNS-only tests.

Export Report

Reports can be exported by clicking on the export button and selecting either CSV or HTML.

Check DNS Server Health

You can select DNS Only to check the health of your DNS server. This only tests the DNS if your domain controller is a DNS server.

Find Domain Controller Issues

Failed tests are highlighted in red, click on a failed test to see details. This makes it very easy to review why a test failed and for quick diagnosis.

Monitor Event Logs

This tool will collect logs from each domain controller and display the latest critical and warning level logs.

Diagnose Replication Issues

If you have multiple domain controllers it’s critical that replication is working. The health monitor tool checks replication and will display a fail if it does not pass the test.

How to Guide

The Active Directory Health Check Tool is very easy to use. Follow the steps below.

Step 1: Select Domain Controllers

Click the “Select Domain Controllers” button to select the domain controllers you want to test.

Step 2: Select options and click Run

Select test options. See the test descriptions below.

Default = 20 tests

Comprehensive = 27 tests

DNS Only = tests DNS servers

Include Event logs = Includes errors and warnings from the selected domain controllers.

Step 3: Review Test Results

For each test that fails, you can click on that failed test to see the logs. This will provide more details on why the test failed and will help you troubleshoot domain controller issues.

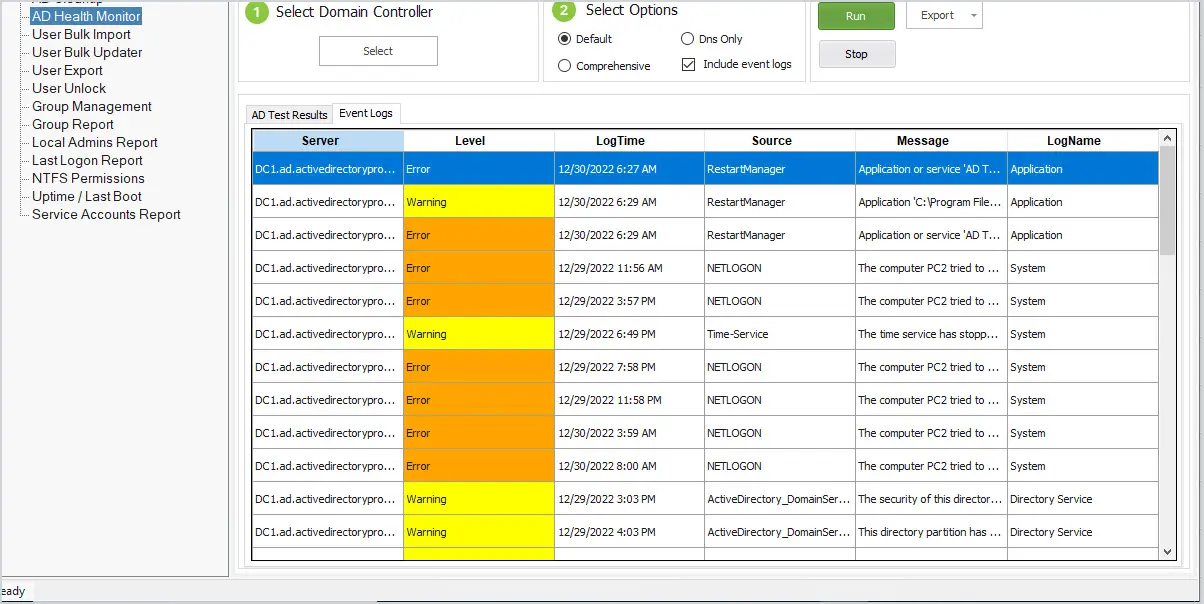

Review Event Logs

In the test options, you can also include the domain controller event logs. This will collect the errors and warnings from each DC. This should be reviewed on a regular basis.

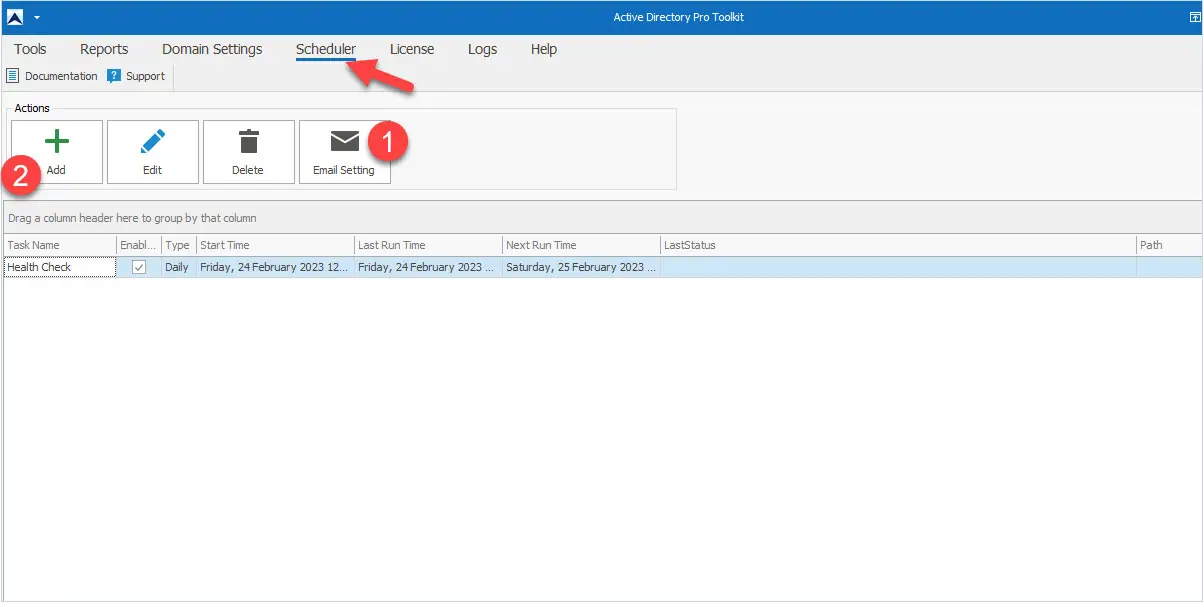

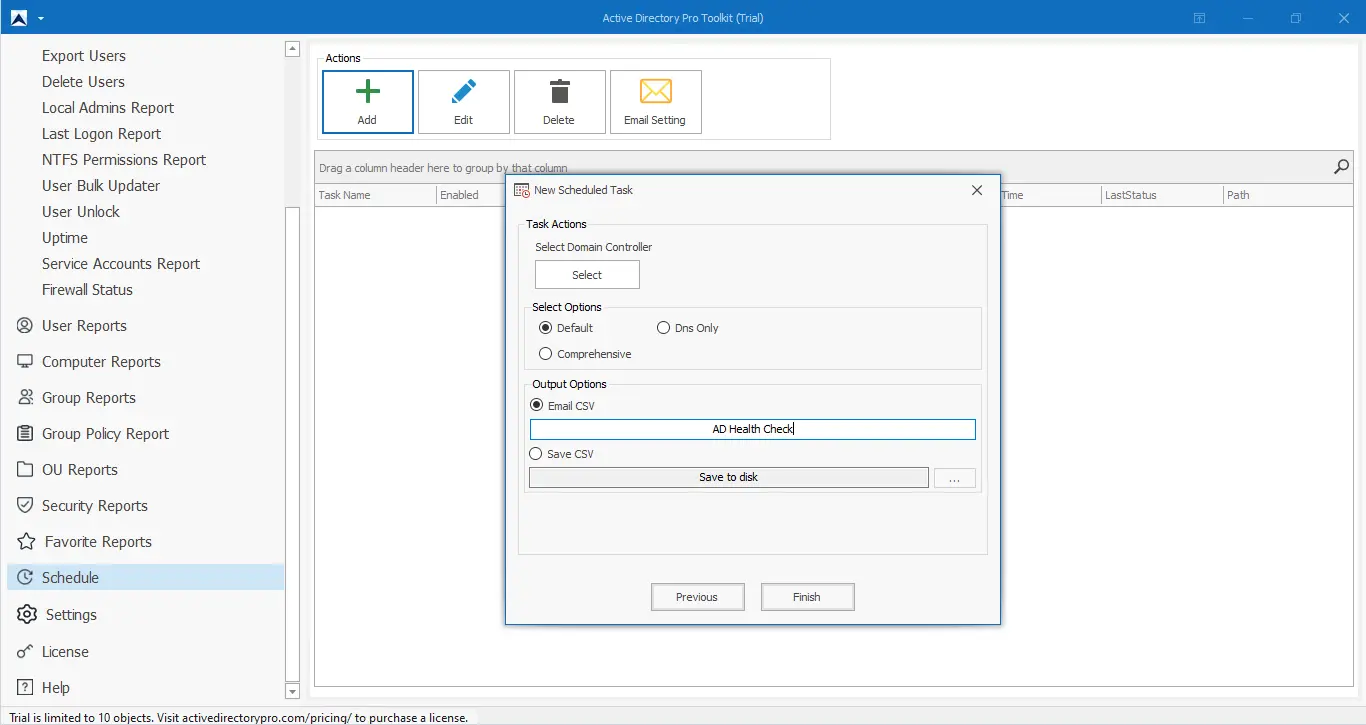

Automate Email Reports

To send automated email reports you need to configure the email settings and then add a scheduled task.

Active Directory Diagnostic Tests

Below is a list of tests that the health monitor tool runs.

Advertising

Checks whether each DSA is advertising itself, and whether it is advertising itself as having the capabilities of a DSA.

CheckSDRefDom

This test checks that all application directory partitions have appropriate security descriptor reference domains.

CheckSecurityError

Locates security errors (or those possibly security related) and performs the initial diagnosis of the problem. *Comprehensive only*

Connectivity

Tests whether DSAs are DNS registered, respond to ping, and have LDAP/RPC connectivity.

CrossRefValidation

This test looks for cross-refs that are in some way invalid.

CutoffServers

Check for servers that won’t receive replications because its partners are down. *Comprehensive only*

DNS

This test checks the health of DNS settings for the domain environment. *Comprehensive & DNS Only*

FrsEvent

This test checks to see if there are any operation errors in the file replication system (FRS).

DFSREvent

This test checks to see if there are any operation errors in the DFS.

SysVolCheck

This test checks that the SYSVOL is ready.

LocatorCheck FSMO Roles

Checks that global role-holders are known, can be located, and are responding.

Intersite

Checks for failures that would prevent or temporarily hold up intersite replication.

KccEvent

This test checks that the Knowledge Consistency Checker is completed without errors.

KnowsOfRoleHolders

Check whether the DSA thinks it knows the role holders, and prints these roles out in verbose mode.

MachineAccount

Check to see if the Machine Account has the proper information.

NCSecDesc

Checks that the security descriptors on the naming context heads have appropriate permissions for replication.

NetLogons

Checks that the appropriate logon privileges allow replication to proceed.

ObjectsReplicated

Check that Machine Account (AD only) and DSA objects have been replicated.

OutboundSecureChannels

Tests if there are secure channels from all the DC’s in the domain. *Comprehensive only*

Replications

Checks for timely replication between directory servers.

RidManager

Check to see if RID master is accessible and to see if it contains the proper information.

Services

Check to see if appropriate supporting services are running.

SystemLog

This test checks that the system is running without errors.

Topology

Checks that the generated topology is fully connected for all DSAs. *Comprehensive only*

VerifyEnterpriseReferences

This test verifies that certain system references are intact for the FRS and Replication infrastructure across all objects in the enterprise on each DSA. *Comprehensive only*

VerifyReferences

This test verifies that certain system references are intact for the FRS and Replication infrastructure.

VerifyReplicas

This test verifies that all application directory partitions are fully instantiated on all replica servers. *Comprehensive only*
